gazz292
Siedler
|
Infosystem interior display, 09 Jan. 2021 21:18
|
Sorry for writing in english, i do not know enough German to communicate well i am afraid.
I am building a drivers workplace for Omsi2, and i would like to add some displays,

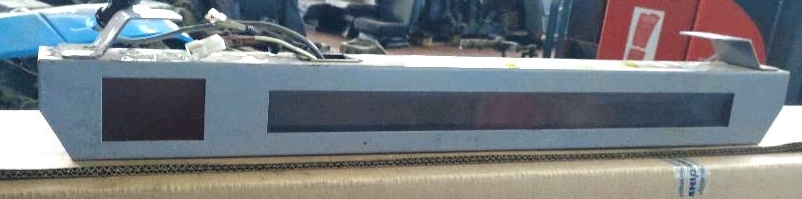

The first one would be an interior display of the type found in 1990 - 2000 year MAN NG272 type buses, it has the ‘Wagen Hält‘ sign on one side, and a yellow LCD display for the next stop.
I am looking to get one from a bus breakers, and it is an ‘Infosystems‘ branded display.
Would i be able to control this from my computer?
I will have a plain text output of what is shown on the omsi bus interior display (using Komsi) and i will need a way to translate that to something a real interior display can read.
The bus breakers has a few different displays, so if the infosystems one is not good, are there others i should ask about?
I was thinking of using something like a ‘xatlabs ibis - usb‘ board, but it says :
"Destination displays using proprietary bus systems like MONO or Alphabus can not be controlled with this converter"
I have an HPW MAS2-IBIS2 unit that is from Berlin, with the bus stop info still loaded on it, but i will have to use only the LCD and keypad from that to work with Omsi2, otherwise i would have tried to get the Infosystems display working with the IBIS directly.
|
|
| |
Beitragsbewertung:
|
xd19@o2.pl
Siedler
49 Beiträge
|
RE: Infosystem interior display, 10 Jan. 2021 11:52
|
This will most likely be normal IBIS and react to 003c or 009 telegram, try both of them.
The "stop" sign is likely wired as a plain signal.
|
|
| |
Beitragsbewertung:
|
gazz292
Siedler
|
RE: Infosystem interior display, 11 Jan. 2021 01:25
|
So it should work with a xatlabs ibis - usb board?
as i don‘t have any of these things yet, so will need to buy all the parts to get this display working, plus a flip dot display that i want to get later.
|
|
| |
Beitragsbewertung:
|
xd19@o2.pl
Siedler
49 Beiträge
|
RE: Infosystem interior display, 11 Jan. 2021 13:26
|
Probably yes. You can also build a simple circuit yourself - use a usb-uart (2$) and transistor to amplify the signal to 24V.
|
|
| |
Beitragsbewertung:
|
gazz292
Siedler
|
RE: Infosystem interior display, 11 Jan. 2021 13:45
|
Brilliant, thank you for that info, very usefull
|
|
| |
