7 Beiträge
|
Meister led sign, 20 May. 2016 06:57
|
Hello, i‘m new to this forum
I dont speak deutsch so I write my message in english.
I work on a bus company here in my country and one of the buses have a Meister Led Sign 16 x 128 with an Ebis 3 controller.
I want to programm the meister board with my own texts.
I understand that it require a PCMCIA card for pragramming the board.
Can you tell tell what version of pcmcia card do i need exactly? do i need a Type 1 (3.3 m) or Type 2 (5.5 mm), or a special version of pcmcia card?
i will attach a few photos of the board.
Tnx in advance.
http://postimg.org/image/isp5er60x/ http://postimg.org/image/4ge2zefk1/ http://postimg.org/image/xoo55pydd/
Geändert von 2bonus am 20.May.2016 7:05
|
|
| |
Beitragsbewertung:
|
MagnusMagus
Senator
673 Beiträge
|
RE: Meister led sign, 20 May. 2016 09:34
|

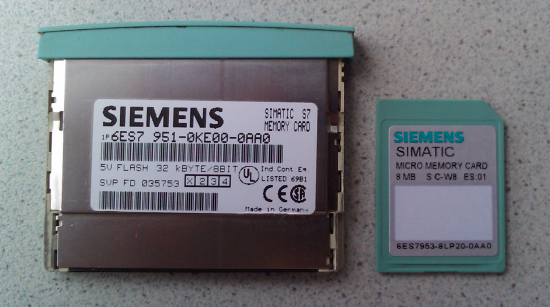

Not a Meister expert, but I think the card has to be a MC card.
MC is something like a cartridge used in NES/SNES.
MC is on the left.
View my english website about IBIS devices IBIS-INFO.
|
|
| |
Beitragsbewertung:
|
Fien1989
Gelehrter
230 Beiträge
|
|
| |
Beitragsbewertung:
|
2bonus
Siedler
7 Beiträge
|
RE: Meister led sign, 23 May. 2016 18:30
|
Thanks a lot, i‘ll purchase one this week. I was sure it‘s a pcmcia card.
Can you recommend me a program for this Meister? What do you use for your Meister?
Tnx again.
|
|
| |
Beitragsbewertung:
|
Fien1989
Gelehrter
230 Beiträge
|
RE: Meister led sign, 29 May. 2016 20:58
|
To program the sign you can use LZD v4.13 or v4.15 for it.
Then use eLan Memory Card Explorer to write the .FLA file to the flash card.
|
|
| |
Beitragsbewertung:
|
2bonus
Siedler
7 Beiträge
|
RE: Meister led sign, 02 Jun. 2016 22:49
|
Thx, thank you very much for your help.
|
|
| |
Beitragsbewertung:
|
davEyw
Gelehrter
132 Beiträge
|
RE: Meister led sign, 25 Jun. 2016 23:15
|
Dont forget that you need a laptop or PCMCIA card reader (something like LAWO/Gorba) to program the card at 12V.
|
|
| |
Beitragsbewertung:
|
2bonus
Siedler
7 Beiträge
|
RE: Meister led sign, 02 Sep. 2016 06:36
|
Hi again, i manage to buy the card, now i need to get a good 12v writer :(
i understand that old laptops (windows 95 or 98) has pcmcia slot with 12v writing, but i dont have one.
can you recommend me a good writer for the card? ( hope is not too expensive).
tnx.
|
|
| |
Beitragsbewertung:
|
orybarfly
Siedler
2 Beiträge
|
RE: Meister led sign, 17 Sep. 2020 19:28
|
Hello,
Can you please let me know where I could download the LZD v4.13 or v4.15 software.
Thank you
|
|
| |
Beitragsbewertung:
|
Fotisgg
Siedler
6 Beiträge
|
RE: Meister led sign, 05 Dec. 2024 10:31
|
Can someone explain steps to use lzd software and write destinations please?
|
|
| |
