ANNAX display - test mode, 08 Aug. 2014 21:07
|
Hallo!

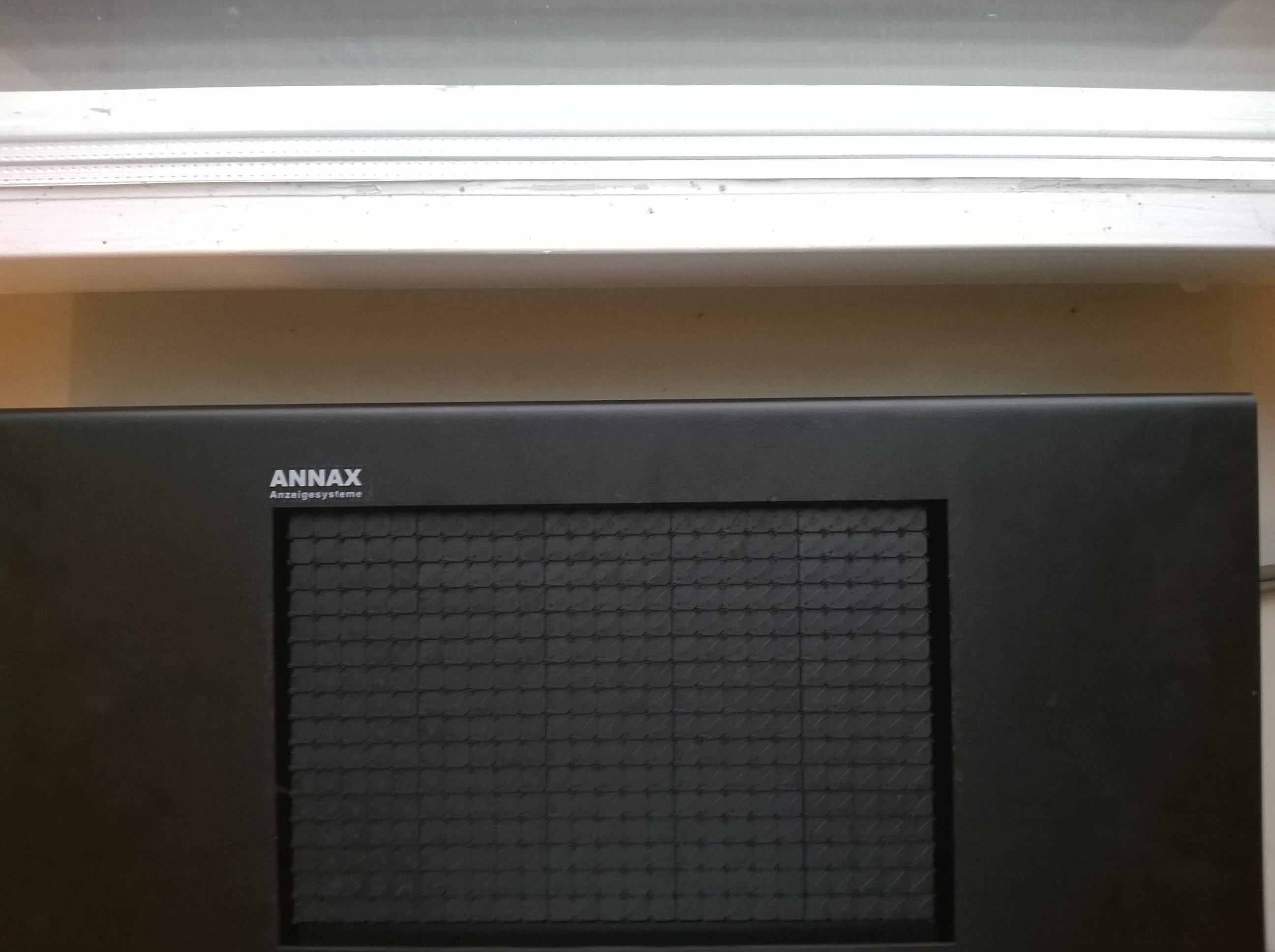

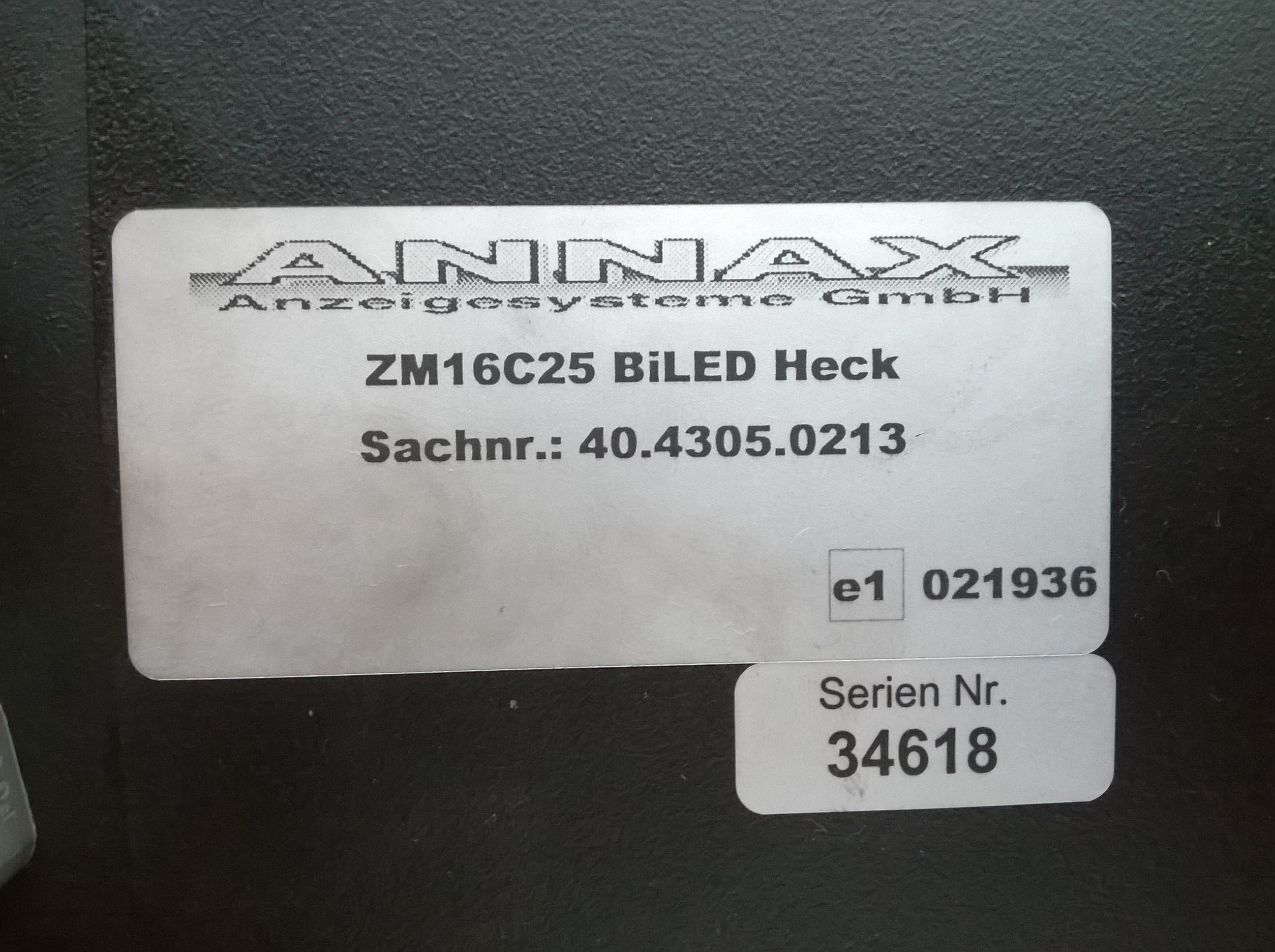

Today i get the 3 ANNAX displays.
Firstly, I wanted to turn test mode, but I have a problem.

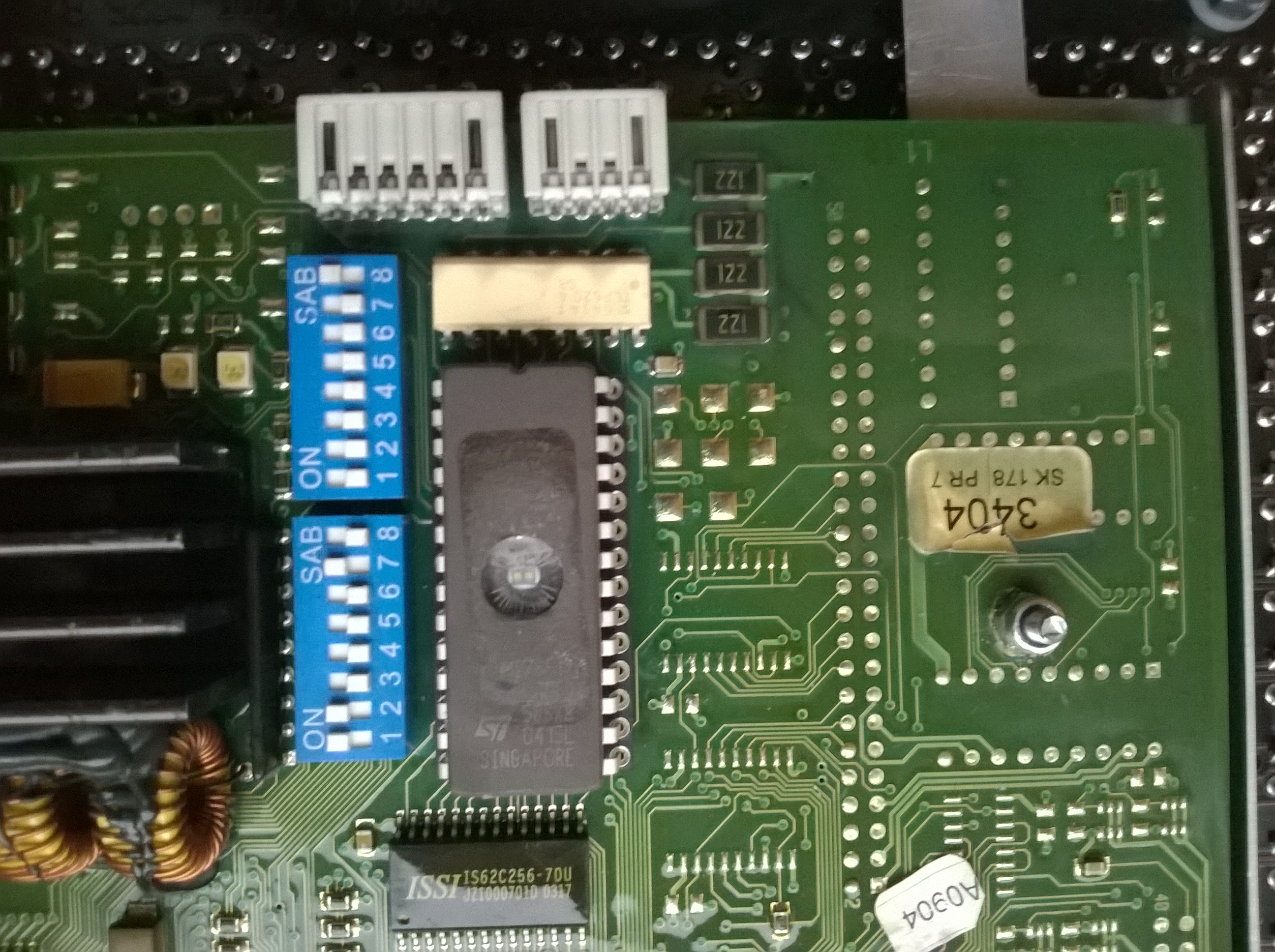

Theres 2 pin-jumper modules.
I think, first of them is used to determine type of display (front, side, back).
The second have turn on pin 8 in all displays.
How to turn the test mode?
|
|
| |
Beitragsbewertung:
|
Thijs van de Bles
Gelehrter
120 Beiträge
|
RE: ANNAX display - test mode, 08 Aug. 2014 22:04
|
First of all, write down these settings, apart for all the displays.
Then try different settings of these DIPswitches.
DIP1 is often used for test programs.
In this case i would try DIP1 of de second DIProw.
Second, there used to be a label over de EPROM window. Please replace it. UV light erases the content of the EPROM.
|
|
| |
Beitragsbewertung:
|
Solaris2001
Siedler
24 Beiträge
|
RE: ANNAX display - test mode, 08 Aug. 2014 22:32
|
Front display, 1 DIPRow sets:
1-ON 2-OFF 3-OFF 4-OFF 5-ON 6-ON 7-ON 8-OFF
Side display, 1 DIPRow sets:
1-OFF 2-ON 3-OFF 4-OFF 5-OFF 6-ON 7-ON 8-OFF
Back display, 1 DIPRow sets:
1-ON 2-ON 3-OFF 4-OFF 5-OFF 6-OFF 7-ON 8-OFF
I will try another combinations.
EDIT:
I connected power supply and ground wrong.
Now its ok, display after turn on make flip-dots test, but it doesn‘t depends on DIP-combination.
For example, I disable all DIPs and display make test.
Is it possible to run the other test from DIP-switches ?
Geändert von Solaris2001 am 9.Aug.2014 7:59
|
|
| |
