LAWO Interior Sign, 03 Jan. 2014 17:17
|
Hello,
I was today on the road and found a few LAWO interior signs.
Since this is my first LAWO ‘sign‘, I would like to know how I can program them with TEDplus and setting up the custom.cfg, I would like to try it with LAWO 801/4 if possible.
Who can help me with this?
====
Kind Regards,
Dave
Hobbyist
|
|
| |
Beitragsbewertung:
|
Jens-MuM
Senator
548 Beiträge
|
RE: LAWO Interior Sign, 03 Jan. 2014 18:18
|
Hello Dave,
in normal case, these interior signs don‘t understand DS1 and DS3 used for outside signs and by 801/4.
It is expected that a DS3c or DS9 is sent to be shown. To find out what version of firmware is on the signs you should connect them to 24 V. In normal case, LAWO signs show their SW version on startup ("A7 ....")
Maybe there is a possibility then to change something, but I don‘t think that there is a memory space available to save destinations....
Regards, Jens
|
|
| |
Beitragsbewertung:
|
Thijs van de Bles
Gelehrter
120 Beiträge
|
RE: LAWO Interior Sign, 03 Jan. 2014 19:35
|
I have 3 of these displays in my collection.
At start-up the display says:
A7 V27 F1......................A7 V2
It responds to the ds009 command, wich format is: v DATA [cr] P
Example:
vIBIS-World ROCKS!!![cr]P

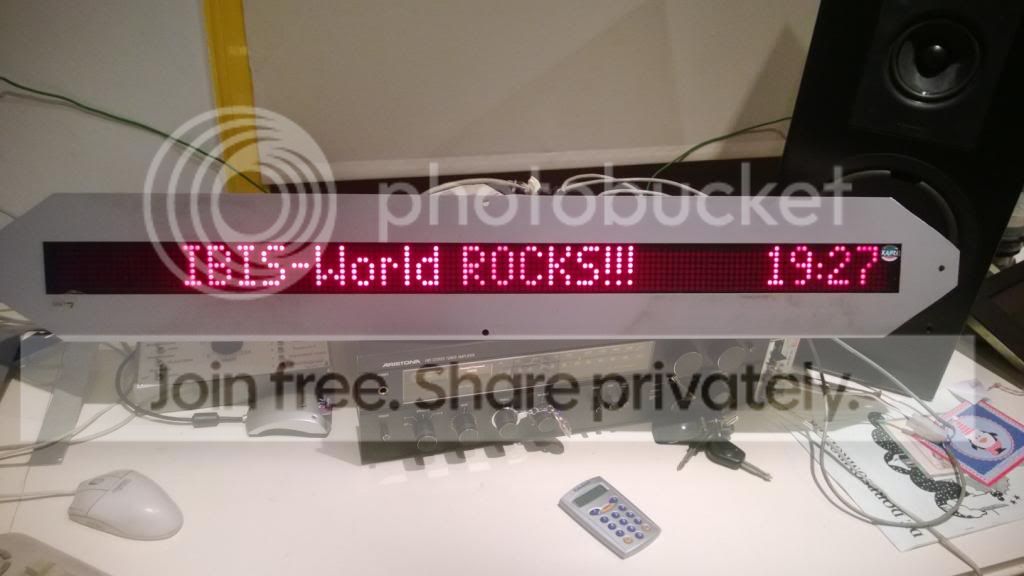

will look like:
The clock will respond to:
u1927[cr]P
Geändert von Thijs van de Bles am 3.Jan.2014 19:36
|
|
| |
Beitragsbewertung:
|
Jens-MuM
Senator
548 Beiträge
|
RE: LAWO Interior Sign, 08 Jan. 2014 21:26
|
Hello Dave,
it seems to be a newer firmware on the interior signs that is configured by InfoTED (you need to create a BIZ-file).
In the configuration it would be possible to include DS1/1a and 3a or other DS for central destination data. DS3 and saved destinations are not available.
The BIZ file must be loaded using the boot-interface with a LAWO 4010 cable (I think it was one like that) using a special DOS program.
That is what I found out, I have an interior sign in use that contains two of these LED plates and works quite similar....
Regards, Jens
|
|
| |
Beitragsbewertung:
|
davEyw
Gelehrter
132 Beiträge
|
RE: LAWO Interior Sign, 10 Jan. 2014 00:01
|
Thanks for the info Thijs and Jens.
When I got any possibilities to control te signs I‘ll will try.
First thing is to find InfoTED. I got TEDplus already.
====
Kind Regards,
Dave
Hobbyist
|
|
| |
Beitragsbewertung:
|
Thijs van de Bles
Gelehrter
120 Beiträge
|
RE: LAWO Interior Sign, 10 Jan. 2014 16:18
|
Or just use the ds009 command.
Krueger can send ds009, you have to make a route in EIS.
Or using a computer and a rs232-->IBIS modem.
|
|
| |
Beitragsbewertung:
|
davEyw
Gelehrter
132 Beiträge
|
RE: LAWO Interior Sign, 10 Jan. 2014 16:46
|
Thijs,
That sounds cool at EIS. Lets give that a try
====
Kind Regards,
Dave
Hobbyist
|
|
| |
Beitragsbewertung:
|
Jens-MuM
Senator
548 Beiträge
|
RE: LAWO Interior Sign, 10 Jan. 2014 17:04
|
Thijs van de Bles:
Or just use the ds009 command.
Krueger can send ds009, you have to make a route in EIS.
Well, that‘s the other option if a KRUEGER EG is available.....
Otherwise: it would be possible that I try to create a BIZ file as you would need it (for example to DS1 and DS3a) because I have access to a InfoTED version. But you will still
need a boot cable from lawo and a notebook with a good old LPT port then....
|
|
| |
Beitragsbewertung:
|
davEyw
Gelehrter
132 Beiträge
|
RE: LAWO Interior Sign, 10 Jan. 2014 17:11
|
Jens-MuM:
Well, thats the other option if a KRUEGER EG is available.....
Krueger EG is not a problem for me to get. Currently I got 2 ‘spares‘.
Jens-MuM:
Otherwise: it would be possible that I try to create a BIZ file as you would need it (for example to DS1 and DS3a) because I have access to a InfoTED version. But you will still
need a boot cable from lawo and a notebook with a good old LPT port then....
LPT or do you mean RS232, since behind the backcover there is one RS232. Is it not just a 1:1 serial cable? (whats so special about the LAWO cable?)
Regards,
====
Kind Regards,
Dave
Hobbyist
|
|
| |
Beitragsbewertung:
|
Jens-MuM
Senator
548 Beiträge
|
RE: LAWO Interior Sign, 10 Jan. 2014 18:40
|
No, it is a LPT connector on PC side. It LOOKS like RS 232, but it is a 9pol-Sub-D with a different use of the poles....
I‘ll send you a link to a uploaded PDF with the pin settings....
|
|
| |
Beitragsbewertung:
|
davEyw
Gelehrter
132 Beiträge
|
RE: LAWO Interior Sign, 10 Jan. 2014 18:41
|
Jens-MuM:
No, it is a LPT connector on PC side. It LOOKS like RS 232, but it is a 9pol-Sub-D with a different use of the poles....
Ill send you a link to a uploaded PDF with the pin settings....
Okay, thats great, thanks!! When I have it working then I‘ll let you know.
====
Kind Regards,
Dave
Hobbyist
|
|
| |
Beitragsbewertung:
|
Thijs van de Bles
Gelehrter
120 Beiträge
|
RE: LAWO Interior Sign, 10 Jan. 2014 19:37
|
On my desktop i have a LPT port, but for my laptop i have a USB --> LPT dongle. So i can use my willem eprom programmer on the road.
You buy such for $3 and a carrot :) Love Ebay.
I have interest too, in infoTED and de wiring diagram for that cable, since a have several displays of this type. In also red and yellow.
|
|
| |
Beitragsbewertung:
|
Jens-MuM
Senator
548 Beiträge
|
RE: LAWO Interior Sign, 11 Jan. 2014 11:24
|
In InfoTED, I can‘t help you, but you have PN with the link to the wiring plan.
|
|
| |
Beitragsbewertung:
|
Thijs van de Bles
Gelehrter
120 Beiträge
|
RE: LAWO Interior Sign, 11 Jan. 2014 19:25
|
Vielen dank!
|
|
| |
Beitragsbewertung:
|
|
|
