Adtranz (Annax?) problem, 29 Dec. 2012 08:50
|
Hey.
I have a problem with arrays Adtranz (ANNAX?).
Is the driver steers krueger EG884 these boards?
Table reading tests, but does not read the line and goals. Adtranz boards 125x16 Dot Matrix bios "BZS1 48.5000.0188 Compact FR-MVV" Processor SAB80C537 Maybe it‘s BIOS? If so, does anyone have the right bios?
Sorry for my english ...
|
|
| |
Beitragsbewertung:
|
ttdragan
Siedler
|
RE: Adtranz (Annax?) problem, 29 Dec. 2012 12:11
|
Hello,
Where are you from? Do you have a picture from the display? You can used the Ibis Utility, for a example DS003a? I have a .BIN
file "DS021" für the display. I may have the same display.Sorry for my BAD English!
regards
Marcel
ДОHT ВОPPИ, БИ XЗППИ
Geändert von ttdragan am 1.Jan.2013 11:45
|
|
| |
Beitragsbewertung:
|
mirowski
Siedler
24 Beiträge
|
RE: Adtranz (Annax?) problem, 30 Dec. 2012 19:53
|
Hi Marcel.
I‘m in Poland.
The picture is on http://gallery.bus-serwis.info
KRUEGER controller parameter 3 is set to:
A, B, D, E, M <=> Ds001, Ds001a, Ds003, Ds003a, Ds020
No Ds021.
It Ds020 (codierung and a H FP, Statusabfrage Anzeiger).
I have no Ibis/RS232 interface. Now I can not preview the transmission.
If you need to send files. Bin of my display.
Regards Mirek.
|
|
| |
Beitragsbewertung:
|
ttdragan
Siedler
|
RE: Adtranz (Annax?) problem, 30 Dec. 2012 22:36
|
Hello Mirek,
My Display has DS003a! I can select my Eprom from my Display an send this to you!

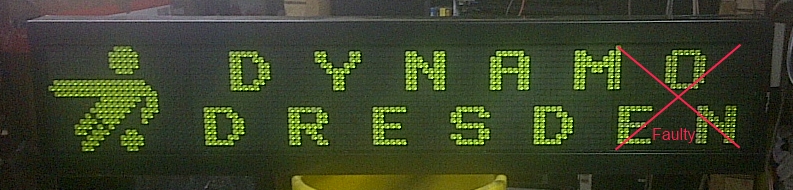

I Need am new Board, my ist faulty. Do you can help me? The last line form this board, is out of order!
In large letters can you see it! The number from board is ZM19C25
Das ist nur ein Beispielbild und nicht meine Meinung!
King regards an happy new year!
Marcel
ДОHT ВОPPИ, БИ XЗППИ
Geändert von ttdragan am 1.Jan.2013 11:45
|
|
| |
Beitragsbewertung:
|
mirowski
Siedler
24 Beiträge
|
RE: Adtranz (Annax?) problem, 31 Dec. 2012 00:16
|
Unfortunately I do not have such a module. Can try to find it. Maybe someone will have. Have you tried to fix this module? And there could be another display? Can you read the contents of the file eprom? (bin or hex) and send me by email?
Happy New Year!!!
Best regards Mirek.
|
|
| |
Beitragsbewertung:
|
ttdragan
Siedler
|
RE: Adtranz (Annax?) problem, 31 Dec. 2012 11:42
|
Mirek:
It takes but a little time! Where from is your Display? Is there possibly any more?
Marcel
ДОHT ВОPPИ, БИ XЗППИ
Geändert von ttdragan am 1.Jan.2013 11:45
|
|
| |
Beitragsbewertung:
|
mirowski
Siedler
24 Beiträge
|
RE: Adtranz (Annax?) problem, 02 Jan. 2013 04:57
|
Hi Marcel.
Displays are used buses purchased on the secondary market.
I do not know where I‘ve ridden this bus. After the tests, the problem is on the side of the BIOS. To elicit information must be given an objective (DS021T) or line number (DS001) and purpose. No lines to display the target must be given at least once. Display remembers the last information. Unfortunately, there is no driver DS021T KRUEGER (must be, and must be given at least once). It remains to replace the BIOS supports DS003a. If your bios reads Ds003a please send me the file. If you want to send you my bios file.
Regards Mirek
|
|
| |
Beitragsbewertung:
|
Jens-MuM
Senator
548 Beiträge
|
RE: Adtranz (Annax?) problem, 03 Jan. 2013 22:35
|
Hi Mirek,
I think it is shown on the BIOS name where the sign ist from:
BZS1 48.5000.0188 Compact FR-MVV"
MVV is the Munich traffic community, Compact FR is an Atron ticket printer. Maybe your BIOS uses a very special telegram, but no DS3a.
If nothing helps - I have a BIOS version working with KRUEGER DS 3a - but I don‘t know if it works on your board. Just write a PN if the attempts with the other BIOS versions do not help.
Regards, Jens
|
|
| |
Beitragsbewertung:
|
mirowski
Siedler
24 Beiträge
|
RE: Adtranz (Annax?) problem, 03 Jan. 2013 22:58
|
Hi Jens.
I think you‘re right. Probably displays were controlled by the cash register. This would explain the lack of control. From the description of the driver Gorba CU5 a DS021. Now check whether steers displays. However, I care more connected KRUEGER driver. KRUEGER and Lawo L86XX. control "standard" display ADRANZ. KRUEGER driver is or replace the controller BIOS, or in displays.
Regards, Mirek
|
|
| |
Beitragsbewertung:
|
Zugbusmodul
Gelehrter
103 Beiträge
|
RE: Adtranz (Annax?) problem, 04 Jan. 2013 15:17
|
Jens-MuM:
Hi Mirek,
I think it is shown on the BIOS name where the sign ist from:
BZS1 48.5000.0188 Compact FR-MVV"
MVV is the Munich traffic community, Compact FR is an Atron ticket printer. Maybe your BIOS uses a very special telegram, but no DS3a.
If nothing helps - I have a BIOS version working with KRUEGER DS 3a - but I dont know if it works on your board. Just write a PN if the attempts with the other BIOS versions do not help.
Regards, Jens
Oder auch MVV Mannheim?
|
|
| |
Beitragsbewertung:
|
Jens-MuM
Senator
548 Beiträge
|
RE: Adtranz (Annax?) problem, 04 Jan. 2013 17:32
|
MVV Mannheim?
Hm, möglich, aber unwahrscheinlich. Meines Wissens hat man dort keine Annax/Adtranz-Anzeigen gehabt, München dagegen traditionell gefühlt schon immer...
|
|
| |
Beitragsbewertung:
|
ttdragan
Siedler
|
RE: Adtranz (Annax?) problem, 04 Jan. 2013 22:45
|
Jens-MuM:
München dagegen traditionell gefühlt schon immer...
Bei welchem Unternehmen?
ДОHT ВОPPИ, БИ XЗППИ
|
|
| |
Beitragsbewertung:
|
mirowski
Siedler
24 Beiträge
|
RE: Adtranz (Annax?) problem, 06 Jan. 2013 20:14
|
Jens thank you.
Unfortunately, the problem remained. My display is fine. It has a thickness of 7 cm, height 25 cm, width of 130 cm (display back). Each flap is illuminated LED. It has four modules. 16x115 points. No PCB: 324-48.4300.004 A4A. How do I find DS003a BIOS is probably the only way out is the use of telegrams translator from DS021T to DS003a between the controller and display. Did anyone else can help me?
Regards Mirek.
|
|
| |
Beitragsbewertung:
|
Solaris2001
Siedler
24 Beiträge
|
RE: Adtranz (Annax?) problem, 10 Aug. 2014 23:23
|
Hi!
I have the same problem in my ANNAX Displays.
Probably its from MVV too, because, displays accepts only DS021, and in Sonderlinien it‘s MVV logo bitmap.
Now I‘m in trouble too, because I don‘t know how to set line number into the back display.
Does anybody know how to do it by DS021 Telegramme?
|
|
| |
